Alteco Engels

Installation floor IV 1260

The Innovative Flooring System for the International Market

The Alteco IV 1260 installation floor is one of the most stable and secure flooring systems available globally. Engineered for server rooms, offices, and technical environments, this system features a robust steel substructure with removable panels available in various configurations.

The integrated substructure includes leveling frames for UPS and air conditioning units, ensuring maximum structural integrity. Fully conductive by design, the system eliminates the need for a separate grounding grid.

This floor is ideal for managing dense cabling and large air ducts, while still allowing easy future modifications or expansions. Installation can also take place at the most strategic time—after the building is sealed—resulting in significant time and cost savings.

/type Alteco IV 1260
/foot Galvanized foot plate
/standards Galvanized gas pipe
/support profile C-profile 60x60x2mm
/finish Floor panel of your choice

Need a floor that’s built around your specific needs?

We offer flooring systems with high dynamic and static stability, backed by extensive expertise and a flexible approach to execution. In addition, our solutions come with a highly competitive price-performance ratio.
These qualities have made us a trusted partner in modern, sustainable, and distinctive projects around the world.

Get in touch

How it works

01

Choose your substructure

Explore the technical specifications of the IV 1260 and the IV 1260-100 installation floors.

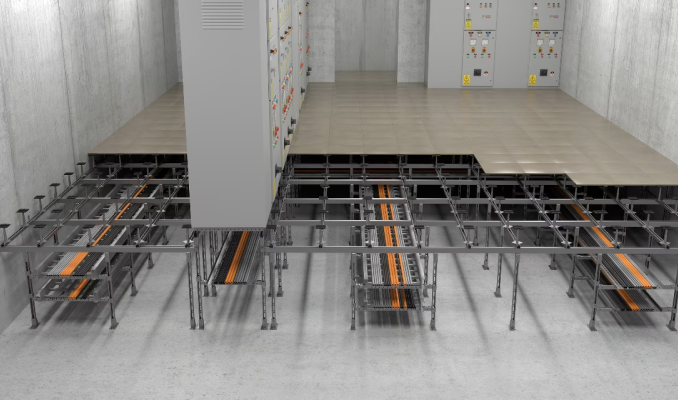

Installation floor
02

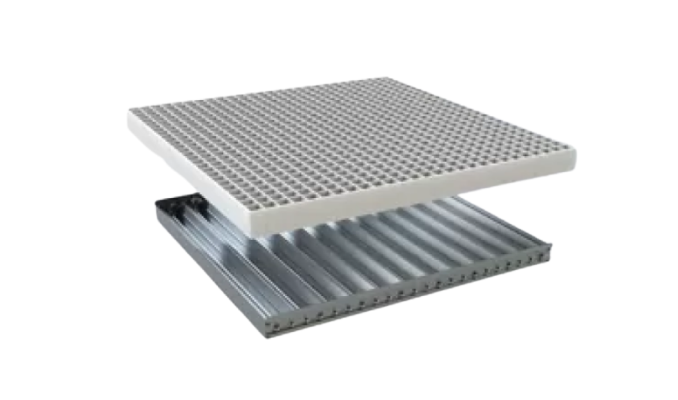

Determine the panels

We offer a variety of high-quality panel types to match your technical and functional needs:

Panel Type Alt 30 – Core made of heavy-duty particle board (720 kg/m³)

Panel Type Alt 40 – Core made of heavy-duty particle board (720 kg/m³)

Panel Type Alt 90 – Core made of mineral fiber reinforced with calcium sulfate

Panel Type Alt 100 – Core made of mineral fiber reinforced with calcium sulfate

Panel Type Alt Cassette – Core of heavy-duty particle board (720 kg/m³) with a galvanized steel cassette

Ventilation Grille ALWA 600 – Steel grille with dual-layer electrostatic powder coating in RAL 7047 (Telegray 4)

03

Finish


We offer a wide range of panel finishing options to suit your functional and aesthetic preferences. These include:

  • Ceramic

  • Laminate

  • Marmoleum Forbo Real Fresco Ohmex

  • Needlefelt Forbo Akzent Forte Markant

  • PVC Gerflor

  • Vinyl Forbo Colorex

  • Rubber Nora



In our proposal, we carefully consider your specific requirements and tailor the finishing options accordingly—ensuring the ideal solution for your project.

Finish - Installation floor - Alteco Europe
04

Accessoires

When selecting accessories for your raised floor system, you may want to consider the following options:

  • Cable grommets

  • Floor boxes for power and/or data connections

  • Steps or staircases

  • Ramps

  • Vertical enclosures

  • Railings

  • Cable trays

  • Braces

  • ALWA 600-IV ventilation grille with adjustable register



Each accessory contributes to improved functionality, safety, and ease of use—tailored to the specific demands of your project.

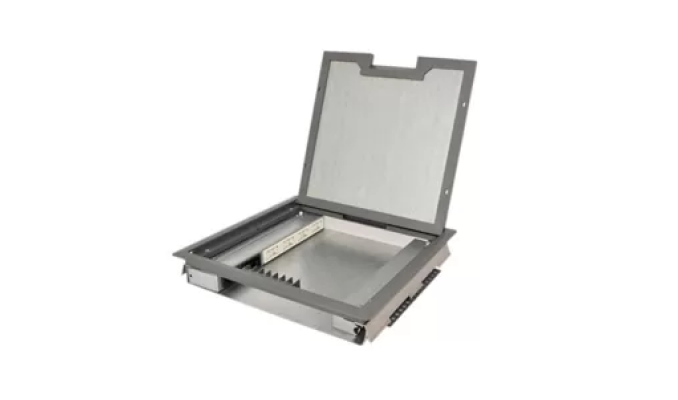

Accessoires installation floor - Alteco Europe

Savings and Benefits with an Alteco Installation Floor

Alteco provides installation floor systems with high dynamic and static stability, extensive expertise, and maximum flexibility in execution. Additionally, Alteco stands out with an excellent price-performance ratio.

Thanks to these qualities, Alteco is involved in modern, sustainable, and innovative projects worldwide, where a reliable and efficient installation floor is essential.

Cost Savings Through Efficient Design and Execution

The leveling frames for UPS and air conditioning cabinets are integrated into the substructure. Thanks to fully conductive assembly, an additional grounding grid is unnecessary.

The installation floor can be installed at an economically advantageous moment—after the building has been made watertight—resulting in significant time savings and cost reduction.

Outstanding Quality, Flexibility, and Stability in Every Installation Floor

Alteco installation floors are fire-retardant and ideal for intensive cabling and large air ducts. They can be easily modified or expanded depending on project requirements.

Additionally, these installation floors are fully demountable, can be installed in multiple phases, and do not require a level subfloor.
